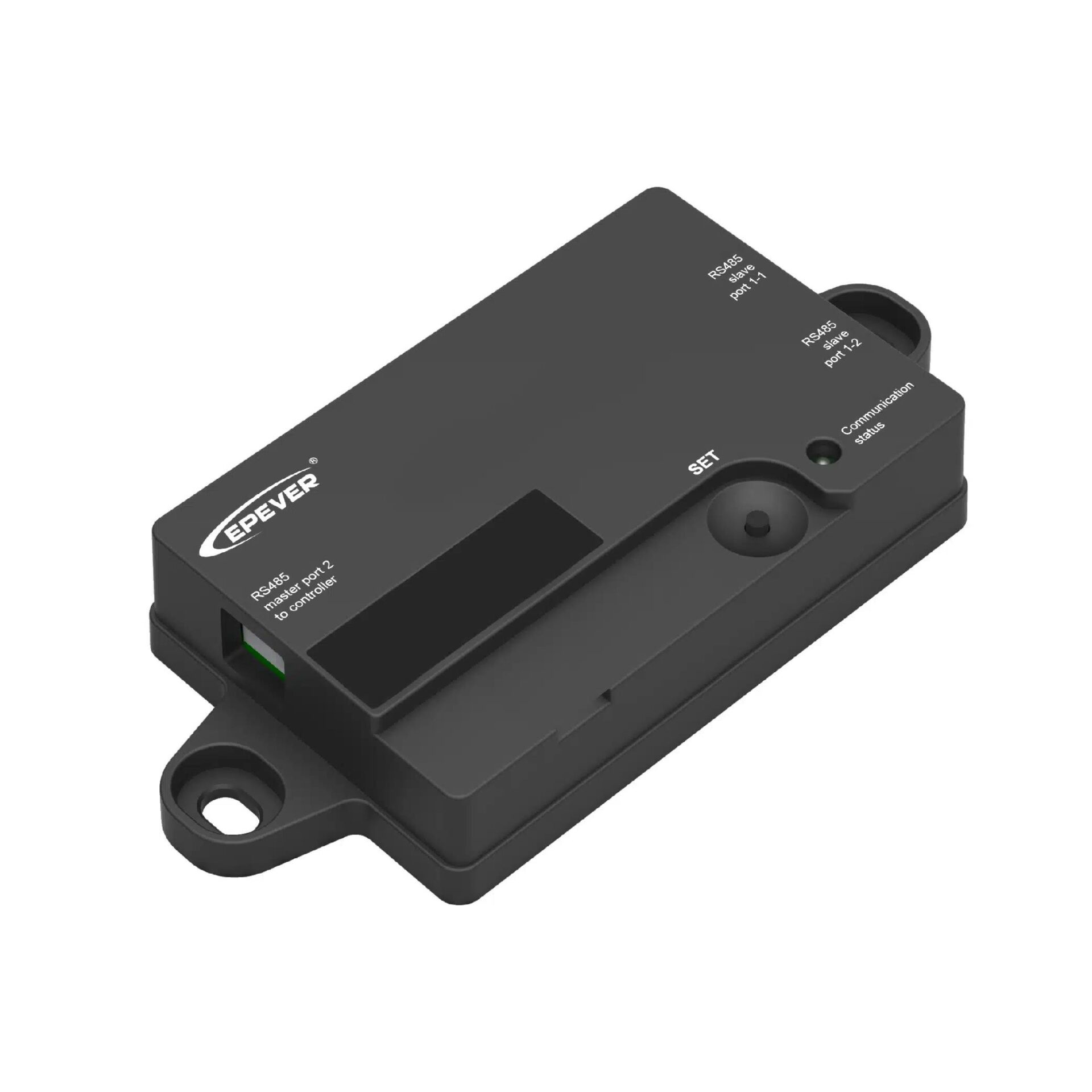

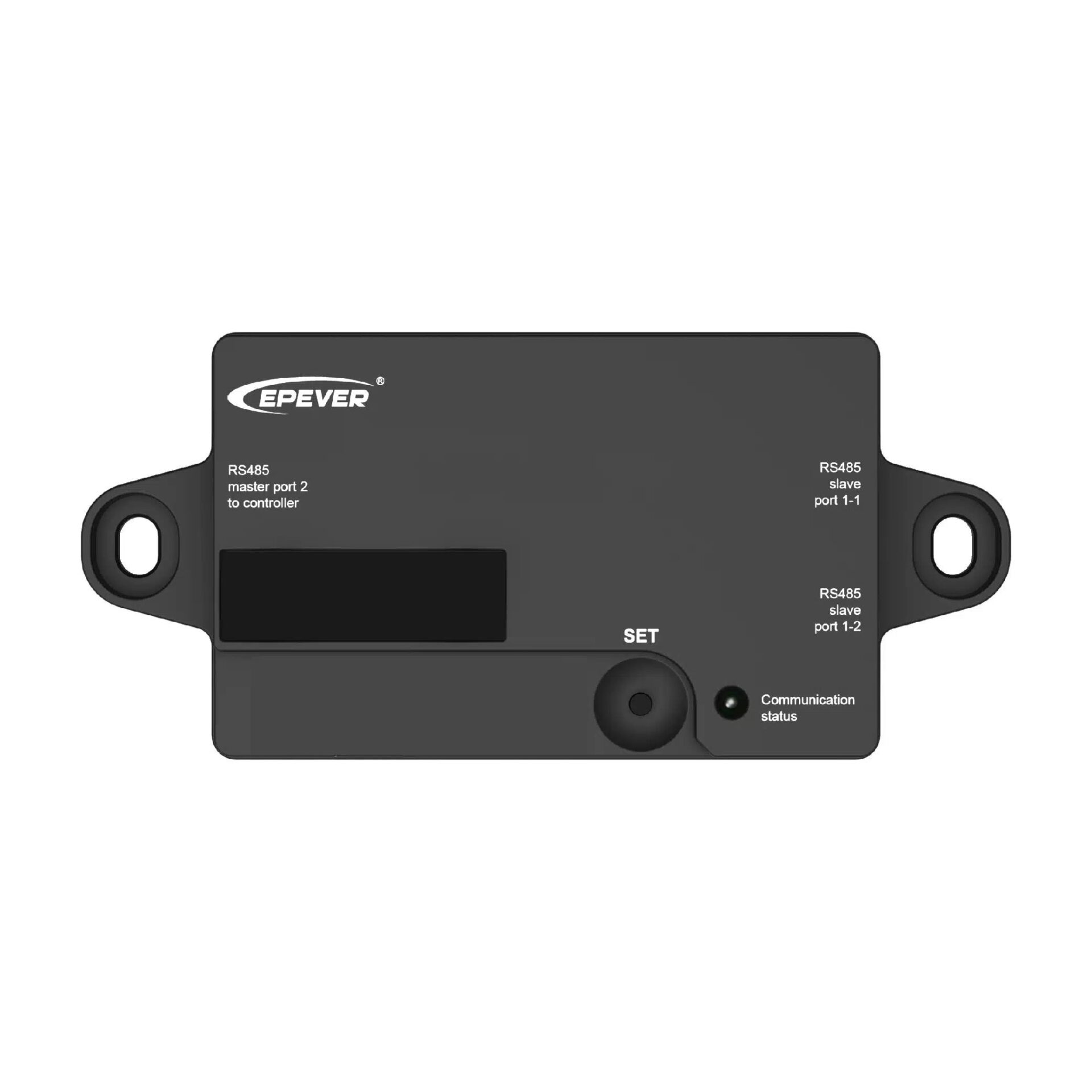

The PAL-ADP-50AN is a parallel that can automatically change the controllers’ charging and operational status.

The PAL-ADP-50AN is a parallel adapter for adjusting the charging current of multiple controllers connected to the battery in parallel, which monitors the charging and operational status in real-time. The adapter automatically changes the controllers’ charging and operational status according to the battery level to prolong the controller lifetime.

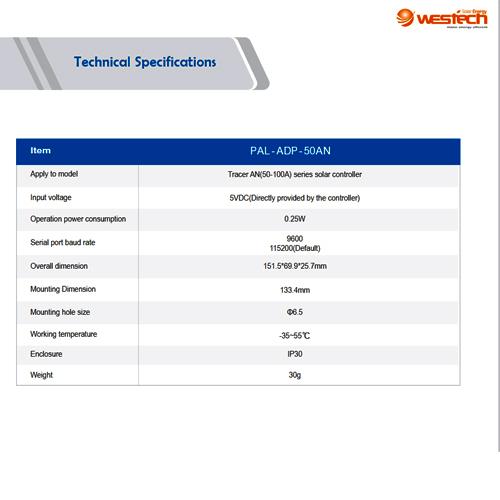

Apply to model           Tracer AN(50-100A) series solar controller

Input voltage   5VDC(Directly provided by the controller)

Operation power consumption            0.25W

Serial port baud rate    9600

115200(Default)

Overall dimension       151.5*69.9*25.7mm

Mounting Dimension  133.4mm

Mounting hole size      Φ6.5

Working temperature  -35~55℃

Enclosure        IP30

Weight            30g

Product Highlights

Consistent control parameters of multiple controllers

Current sharing by intelligently adjust each controller’s charging current

Support up to 6 controllers in parallel

Support standard Modbus communication protocol

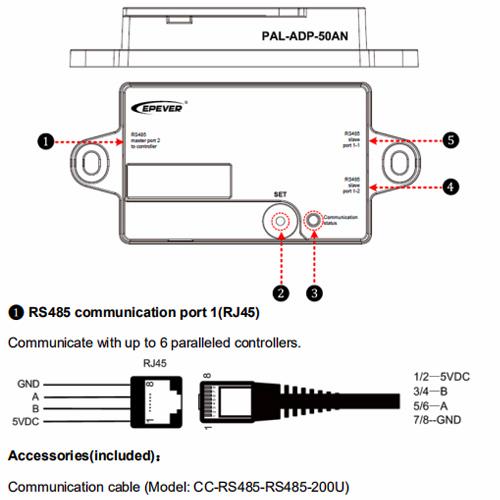

External remote monitor units by the RS485 communication bus

One button to set the communication baud rate 9600/115200

LED indicating working status
